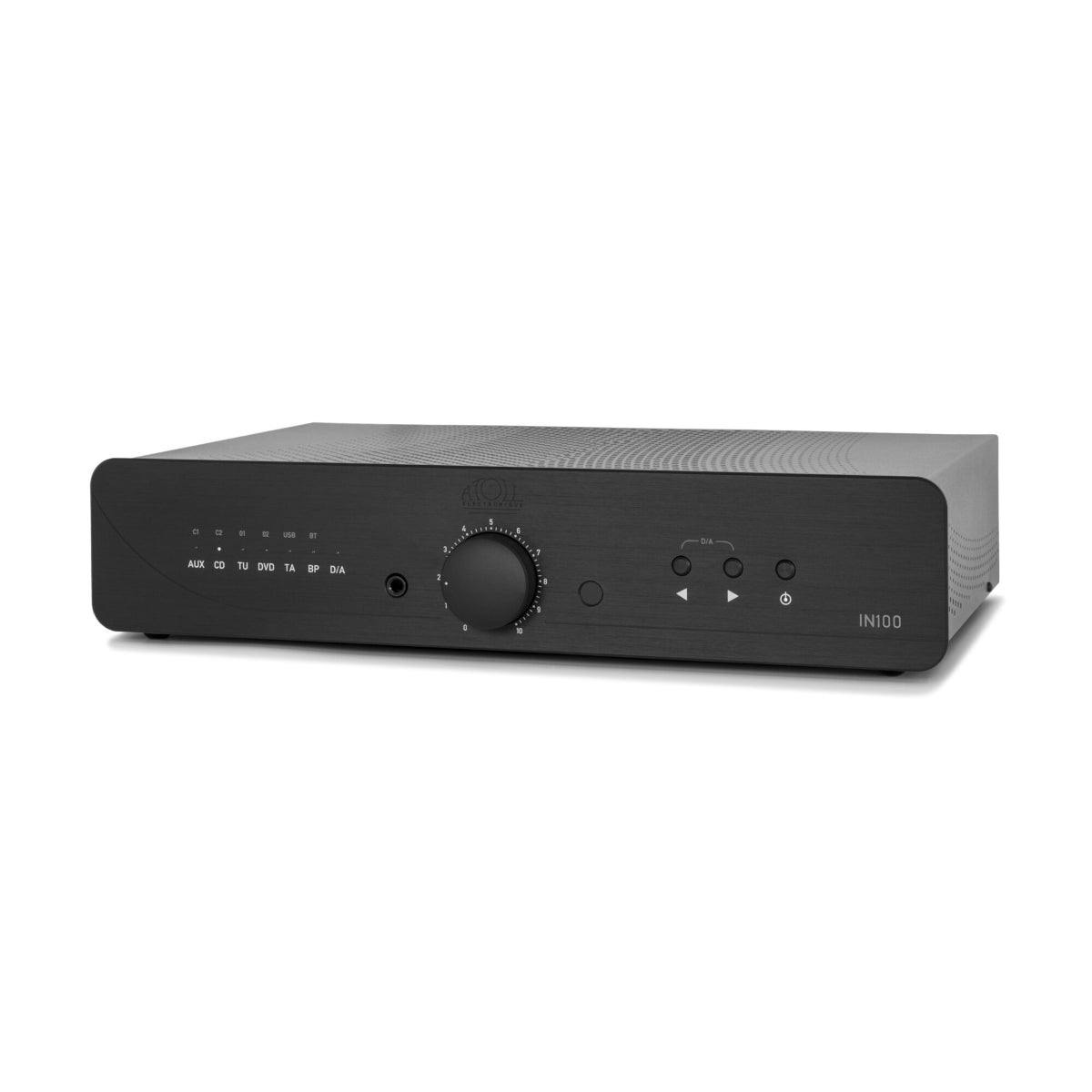

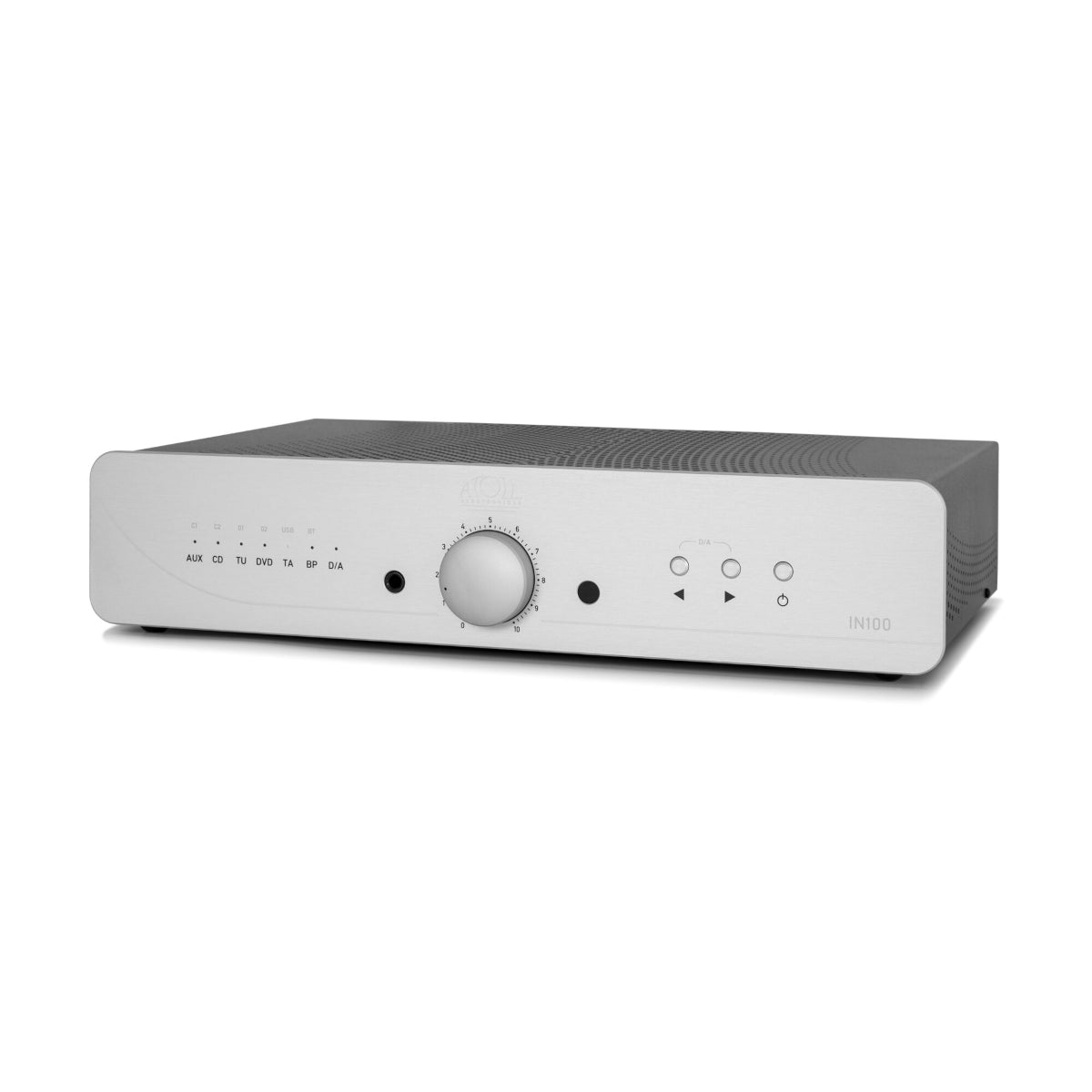

Atoll Electronique IN100 Signature Integrated Amplifier

Atoll Electronique IN100 Signature Integrated Amplifier

$2,499.00 AUD
$2,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color: Black

The integrated amp-preamp IN100 Signature is manufactured with the utmost care. We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.

Note : DAC board and Remote Control is sold separately

Features :

  • 4 mm brushed aluminium front panel.
  • 2×100 W / 8Ω.
  • 2 toroidal transformers of 340 VA each.
  • ALPS motorized potentiometer.
  • Filter capacitors: 4×6800 μF.
  • Single push-pull MOS-FET power stage.
  • Monitoring loop.
  • Discrete component audio stages.
  • MKP Technology Link Capacitors.
  • High-performance heat sinks, direct thermal coupling.
  • Double-sided circuit boards with nickel/gold finish.
  • Polarization of output stages in class A/B.
  • Thermal protection.

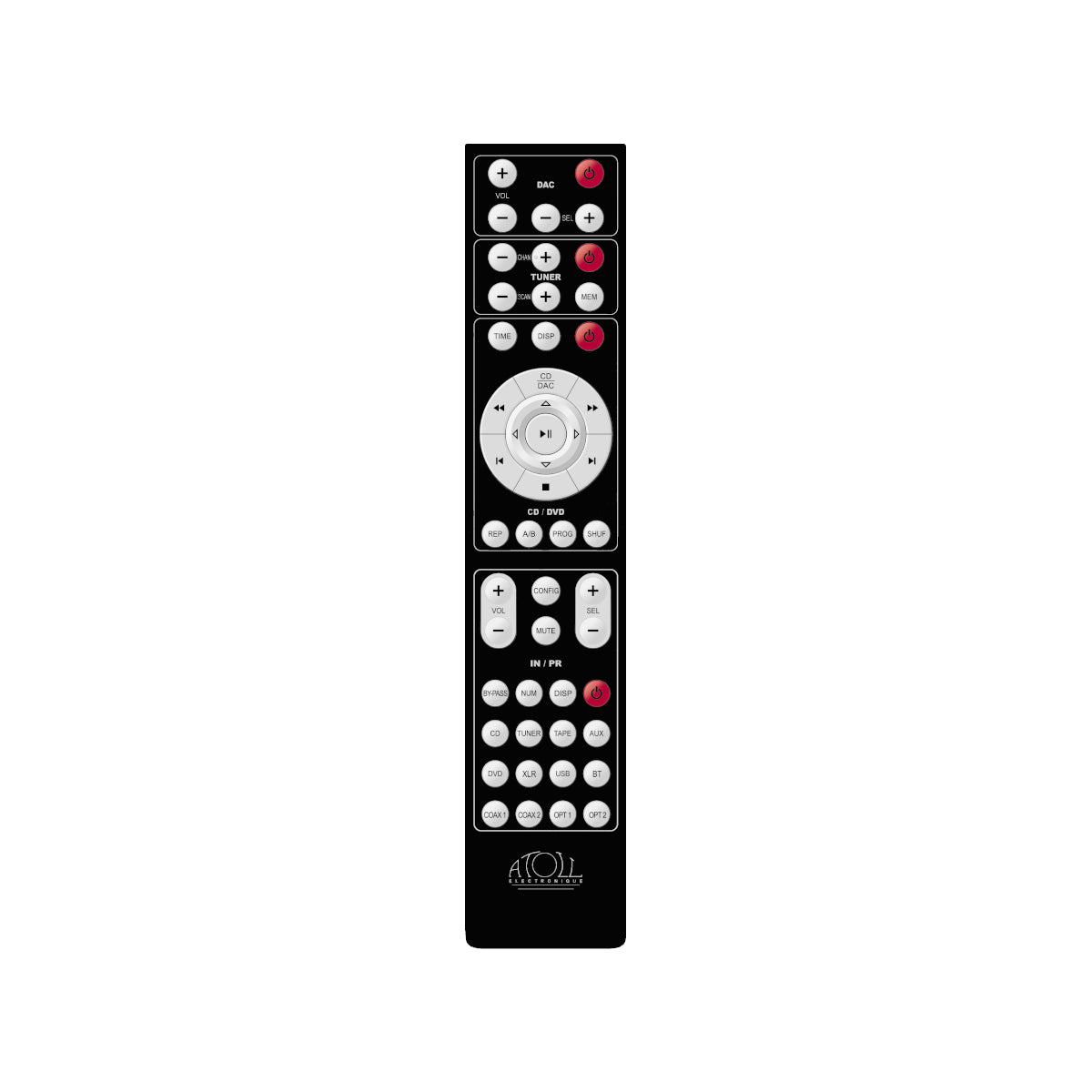

  • Optional ATOLL global remote control.
  • The IN100 Signature can receive the following optional boards:

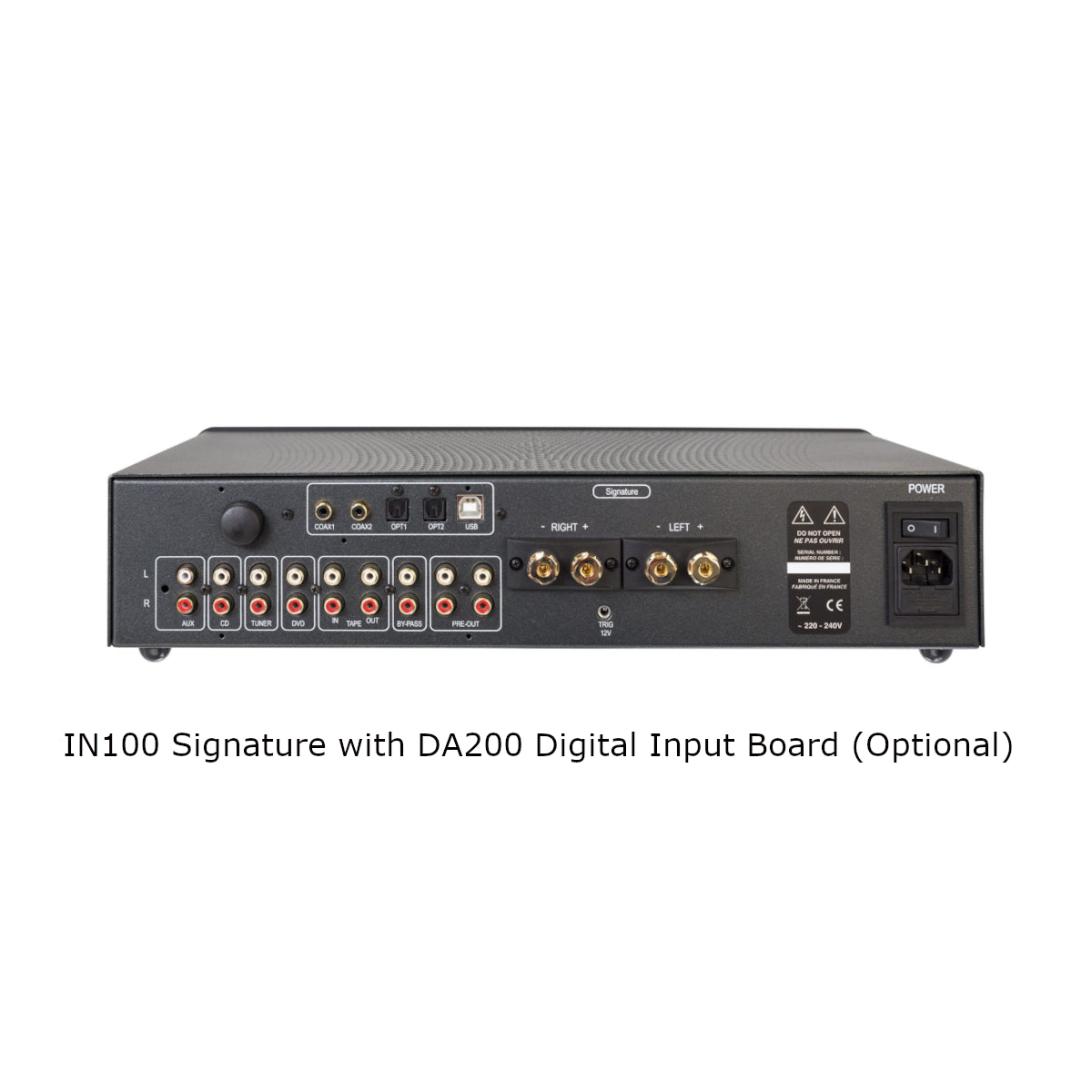

          – DAC boards: DA100 and DA200.
          – PHONO boards: P50 and P100 (can be combined with DAC boards).

Features

  • 4 mm brushed aluminium front panel.
  • 2×100 W / 8Ω.
  • 2 toroidal transformers of 340 VA each.
  • ALPS motorized potentiometer.
  • Filter capacitors: 4×6800 μF.
  • Single push-pull MOS-FET power stage.
  • Monitoring loop.
  • Discrete component audio stages.
  • MKP Technology Link Capacitors.
  • High-performance heat sinks, direct thermal coupling.
  • Double-sided circuit boards with nickel/gold finish.
  • Polarization of output stages in class A/B.
  • Thermal protection.
  • Optional ATOLL global remote control.
  • The IN100 Signature can receive the following optional boards:

          – DAC boards: DA100 and DA200.
          – PHONO boards: P50 and P100 (can be combined with DAC boards).

Specifications

  • Output power Wrms/8Ω: 2×100 W
  • Output power Wrms/4Ω: 2×140 W
  • Power supply: 2×340 VA
  • Total of capacitors: 31 474 µF
  • Number of inputs: 5+1 BY-PASS
  • Preamp outputs: 2
  • Bandwidth: 5 Hz – 100 kHz
  • Rising time:2,5 µs
  • Input impedance: 357 kΩ
  • Sensitivity: 100 mV
  • Signal/Noise ratio: 100 dBA
  • Distortion at 1 kHz: 0,05% / 10 W
  • Dimensions: 440×305×95 mm
  • Weight: 11 Kg

What's in the box

Atoll IN100
