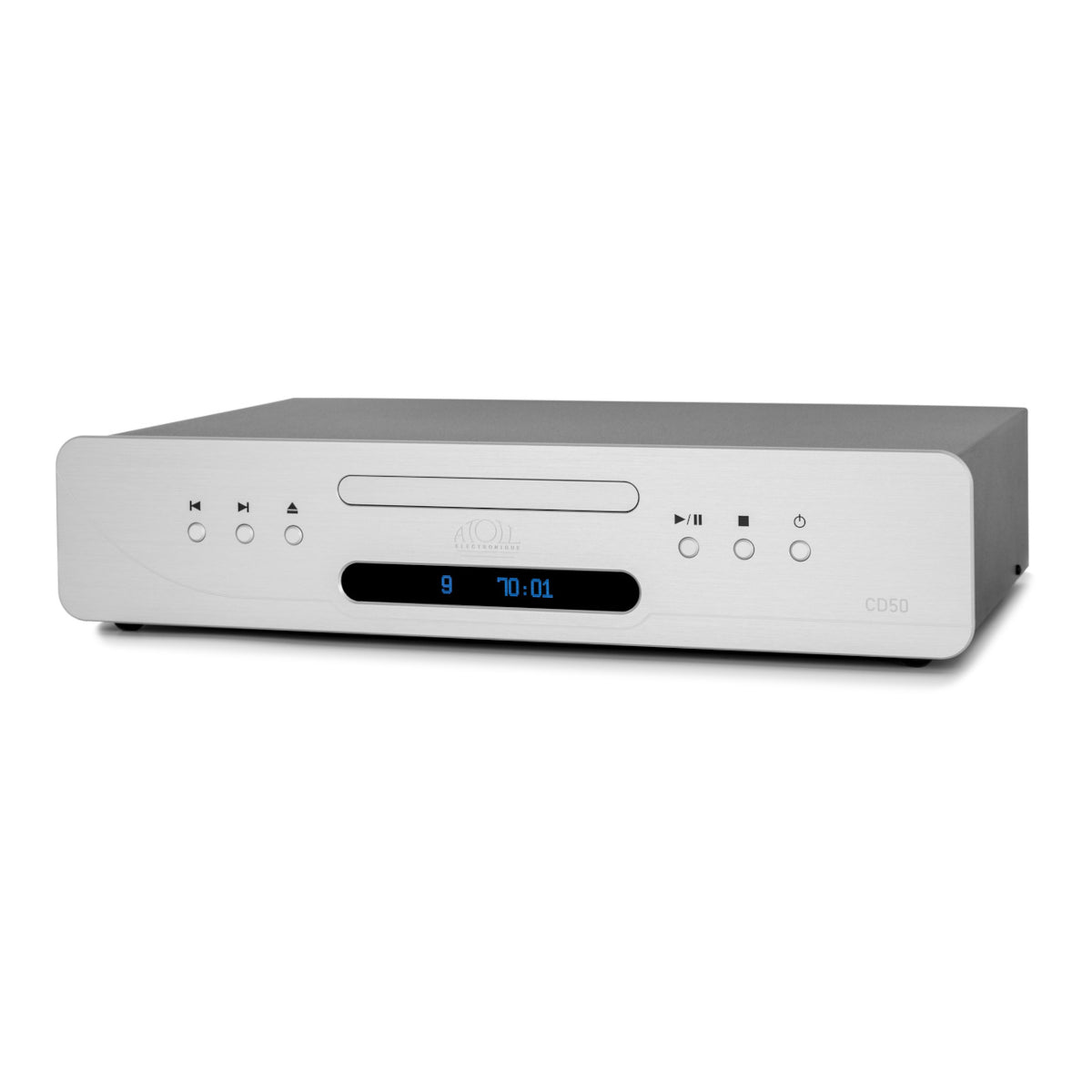

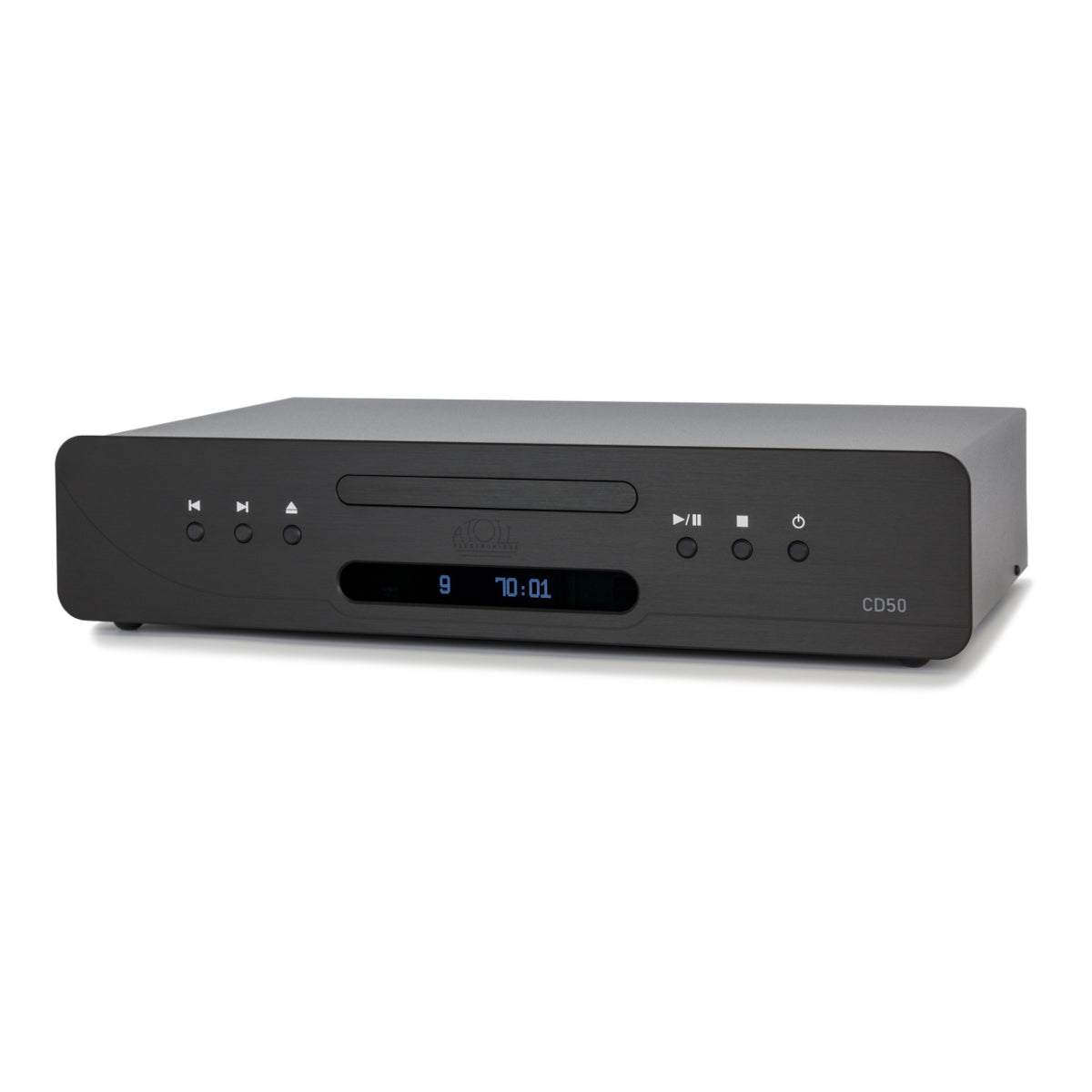

Atoll Electronique CD50 Evolution CD Player

Overview

The Evolution Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

Features

• Pure audio CD drive from TEAC
• Supplies of audio stages with linear transformer
• Linear supply of digital stages with specific 30VA transformer
• 6 regulated supplies
• BURR-BROWN PCM1791A converter
• differential audio outputs with discrete components polarized in A class
• DC coupling (no link capacitor)
• 4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium keys

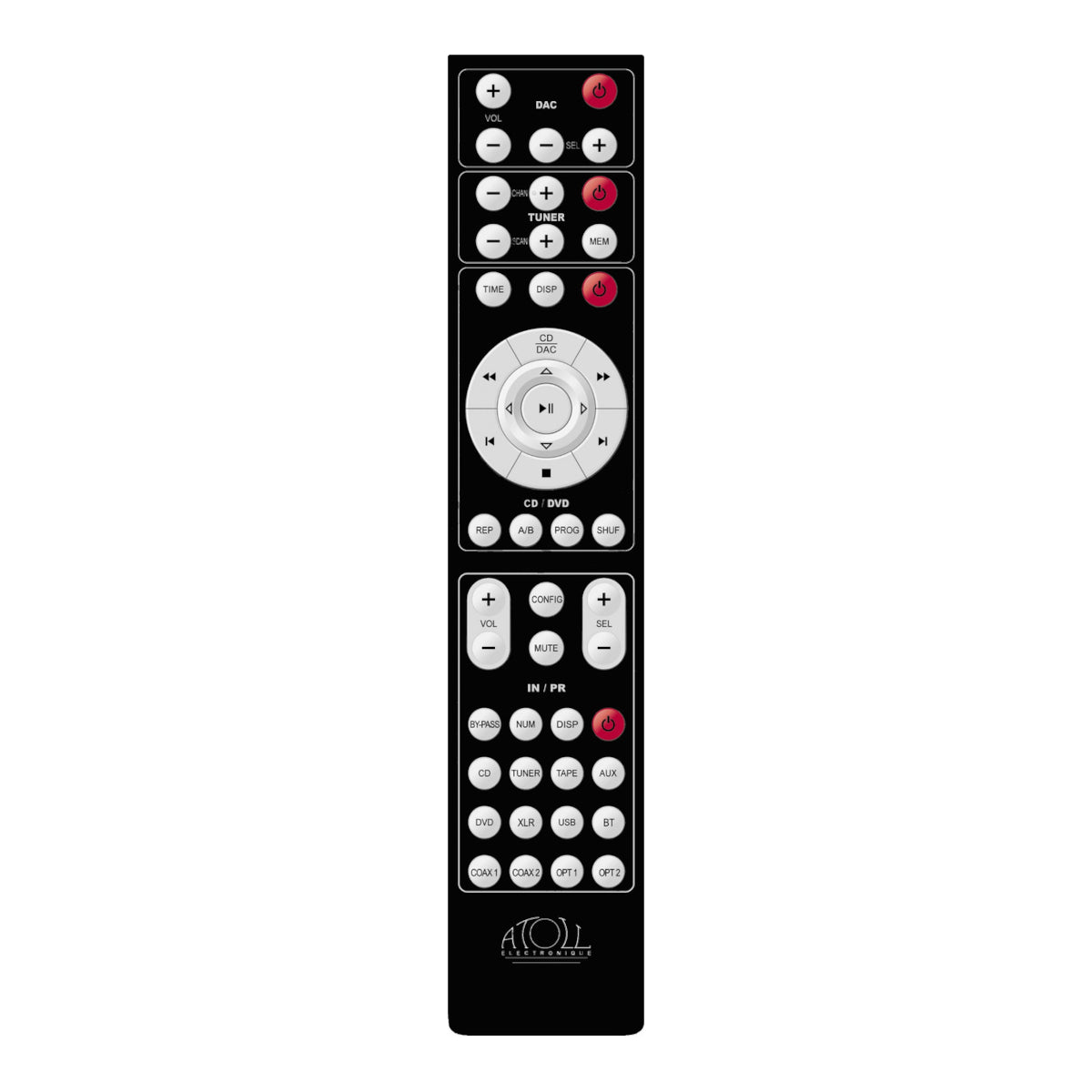

• Serial remote control
• CD text
• Readable files: CD, CD-R, CD-RW. Formats: MP3-WMA-AAC
• Low consumption OLED display

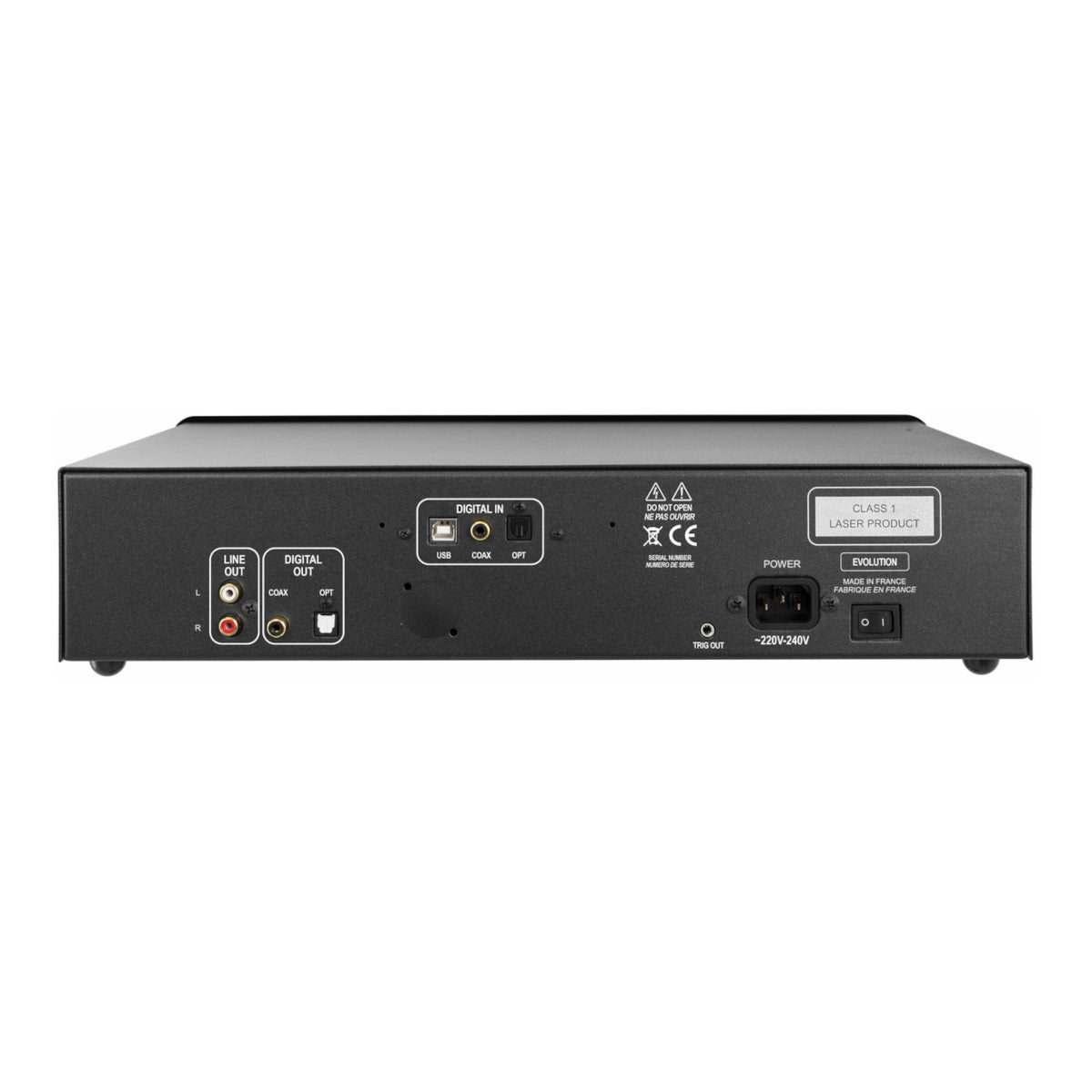

• 1 analog and 2 digital outputs (coaxial & optical)

Optional DAC Board

• The CD50 Signature can be equipped with an optional board including 3 digital inputs:
• 1 digital input Coaxial (24 bits/192kHz)
• 1 digital input Optical (24 bits/192kHz)
• 1 USB input:PCM from 16 bits to 24bits up to 192 kHz (asynchronous).
• USB : XMOS with specific program designed for ATOLL.
