Atoll

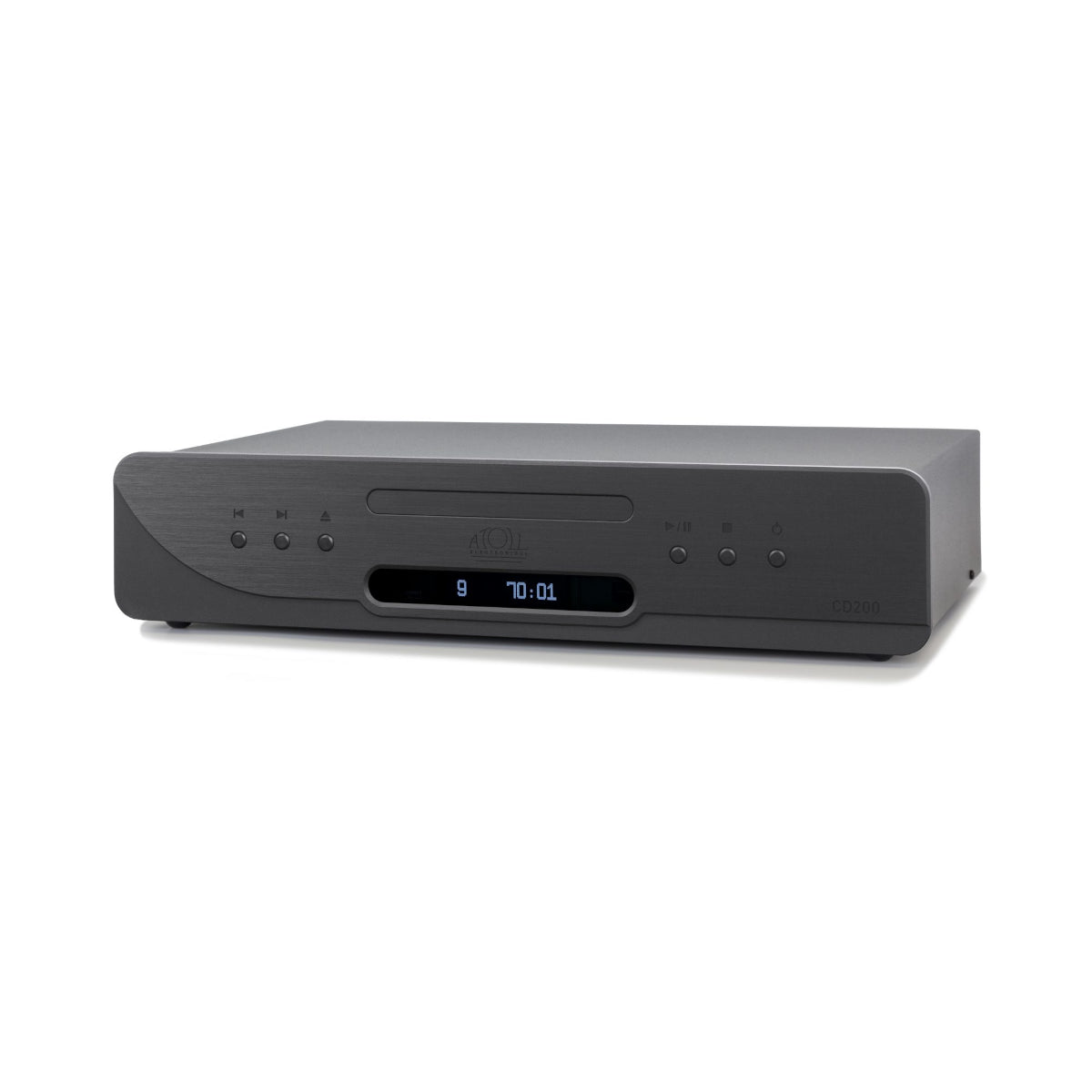

Atoll Electronique CD 200 Evolution

$3,599.00 AUD

Sale Sold out

Shipping calculated at checkout.

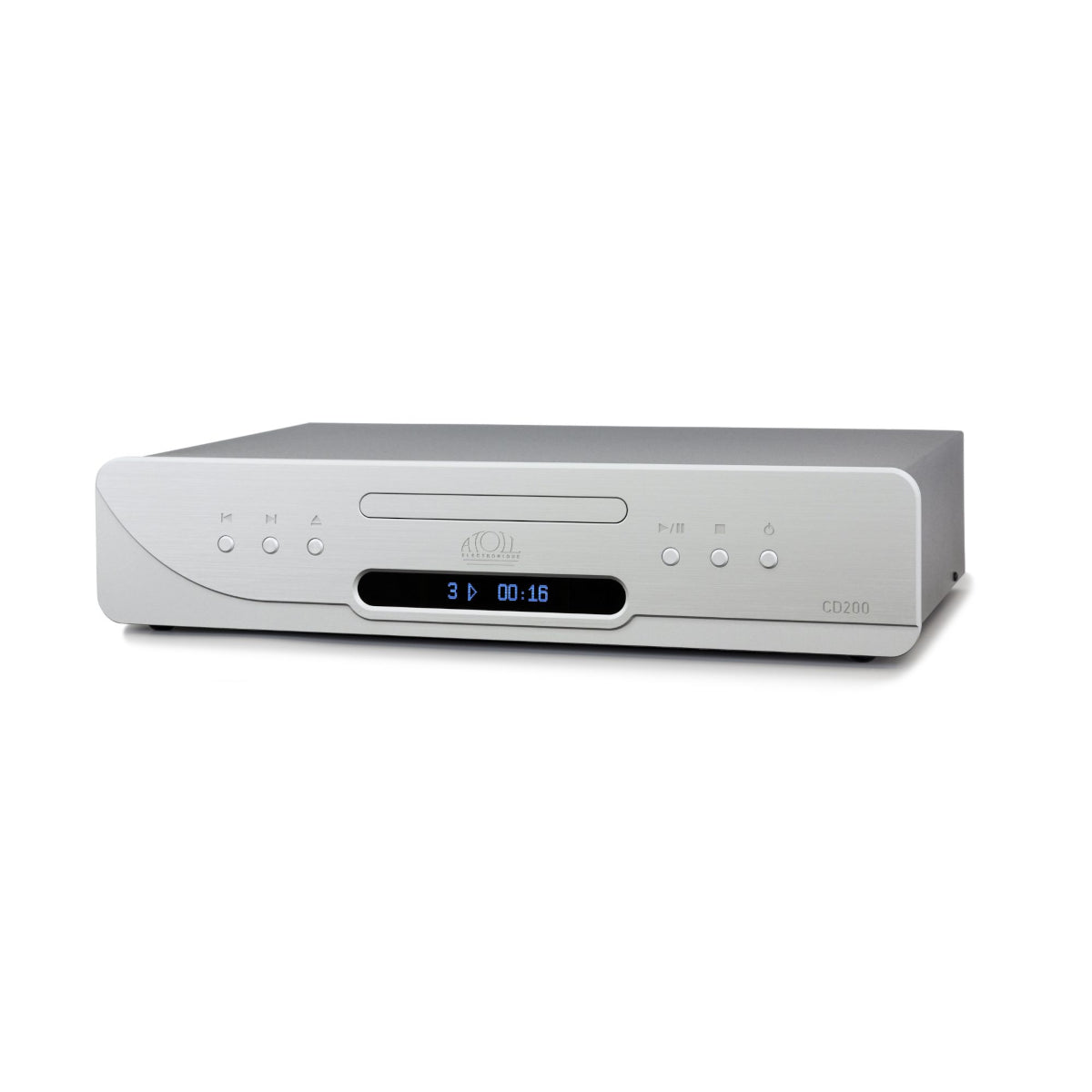

Color: Silver

Optional Board None DC200

Quantity

The Evolution Series CD players benefit from many innovations in power supplies or audio and conversion stages.

In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.

Features

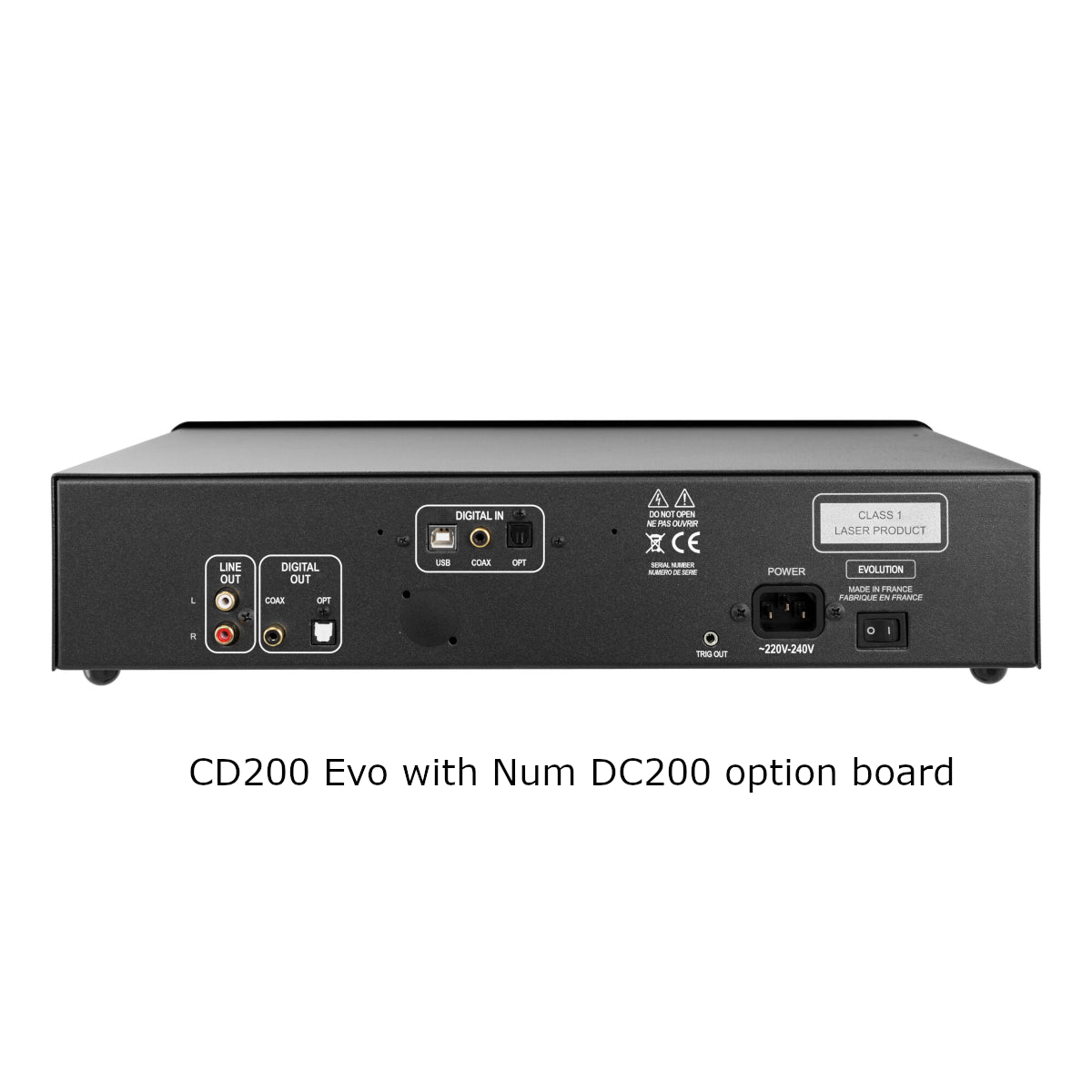

CONNECTIVITY

Outputs

1 Line digital outputs (right & left).
1 Coaxial digital output (to a converter D/A).
1 Optical digital output (to a converter D/A).
12V Trigger output.

Optional Digital Board

USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).

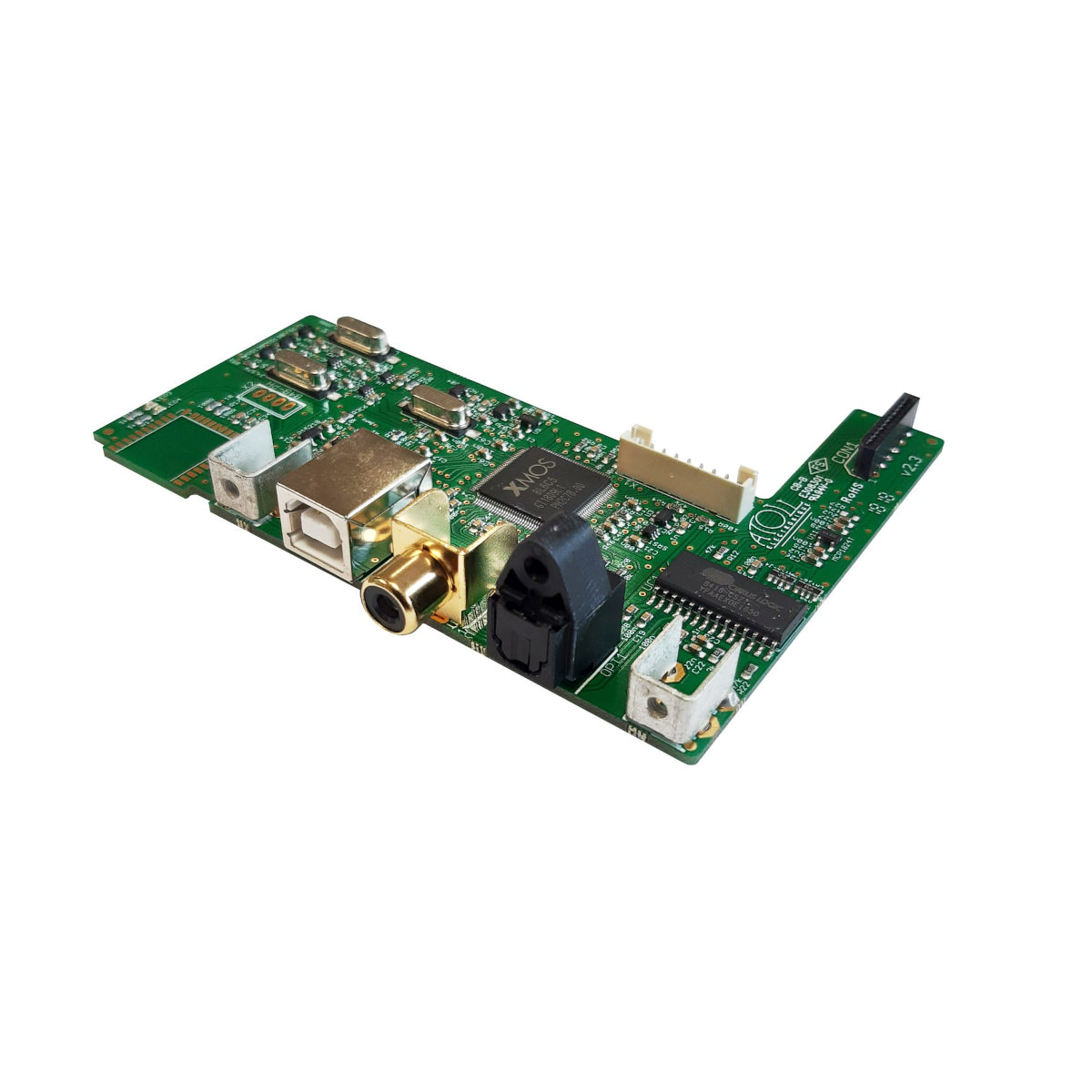

DC200 DIGITAL OPTION BOARD

CD players from the Signature range can be optionally fitted with a card with three digital inputs:

1 Coaxial input (S/PDIF – 24 bits/192 kHz).
1 Optical input (S/PDIF – 24 bits/192 kHz).
1 Synchronous USB-B input: 16 bits to 32 bits PCM stream up to 192 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).

Specifications

Specs

Supply: 30 + 10 + 1,6 VA
Total of capacitors: 21 450 µF
Converter (D/A): PCM1792A
Dynamic: 129 dB
Signal/Noise Ratio: 129 dB
Distortion at 1 kHz: 0.0004%
Output level: 2,65 Vrms
Output impedance: 5,6 Ω
Bandwidth: 5 Hz – 20 kHz
Rise time: 2,0 µs
Standby consumption: < 0.5 W
Operating consumption: 10 to 19 W
Dimensions (mm): 440×284×95
Weight: 7 Kg
