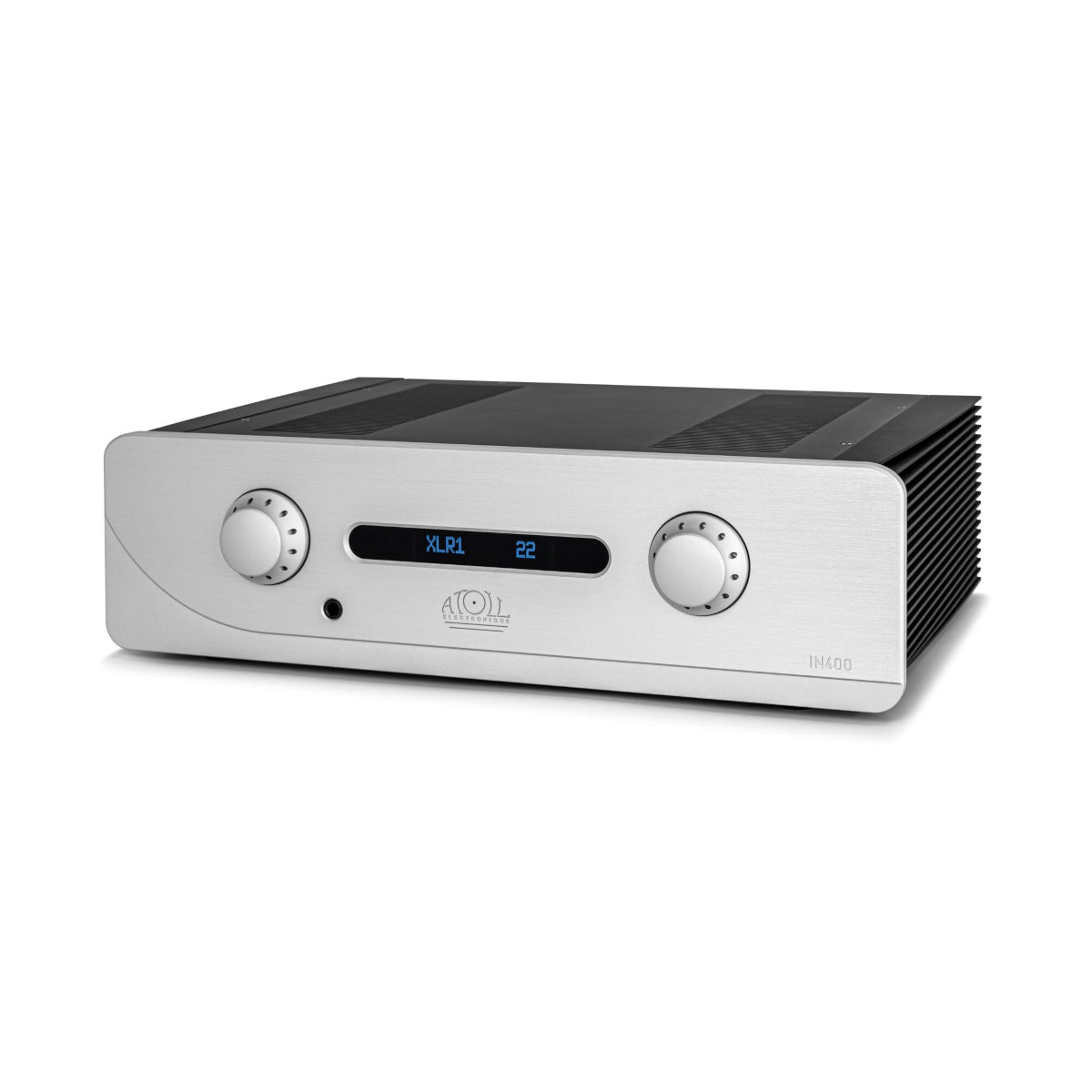

Atoll Electronique IN400 Evolution Integrated Amplifier

$10,499.00 AUD

Sale Sold out

Shipping calculated at checkout.

Color: Silver

Optional Board No Board DAC100 DAC200 P50 P100 DAC200 and P100

Quantity

The IN400 EVO is an integrated amp-preamp with high musical capacity. The concept is based on technical and aesthetic choices dedicated to optimal musicality.

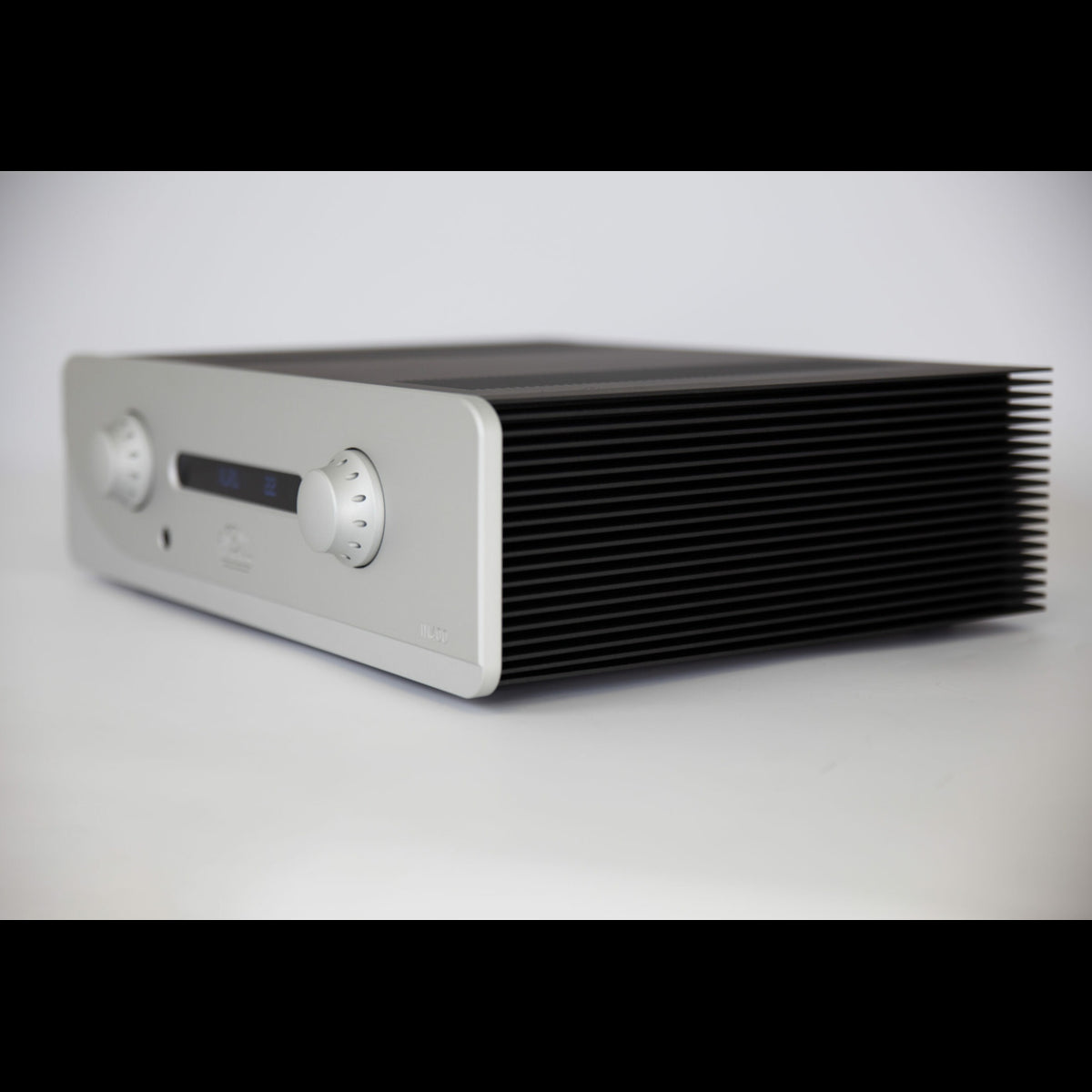

Mechanically, the chassis is made of 2 mm steel, and the front face is 10 mm aluminium, brushed, micro-blasted, and anodised, with high-precision engraving. The side heatsinks are machined from solid aluminium blocks to absorb mechanical vibrations and ensure perfect heat dissipation.

Features

Front panel in 10 mm brushed, micro-blasted and anodised aluminium,
high-precision engraving.
Mass-machined aluminium heatsink and buttons.
2 mm steel chassis.
Two toroidal transformers: 1050 VA (audio) + 1,6 VA (control logic).
High quality shielded MKP link capacitors.
Integral double mono structure:
– Separate windings for each channel.
– One attenuator per channel (with switched resistors).
Bipolar transistor input stages.
Current sources with bipolar transistors and LEDs to ensure perfect voltage stability.
Darlington transistor driver stages.
Audio stages with perfectly symmetrical structure, low feedback.
Power stages with MOS-FET transistors (8 per channel) rigorously matched.
Precise adjustment of the balance, possibility to memorise it.
Possibility of choosing the standby mode: Low consumption or preheating.
Configurable buttons backlighting.
High contrast OLED display: ON or OFF mode (after 5 seconds of inaction).
ATOLL global remote control delivered as standard.

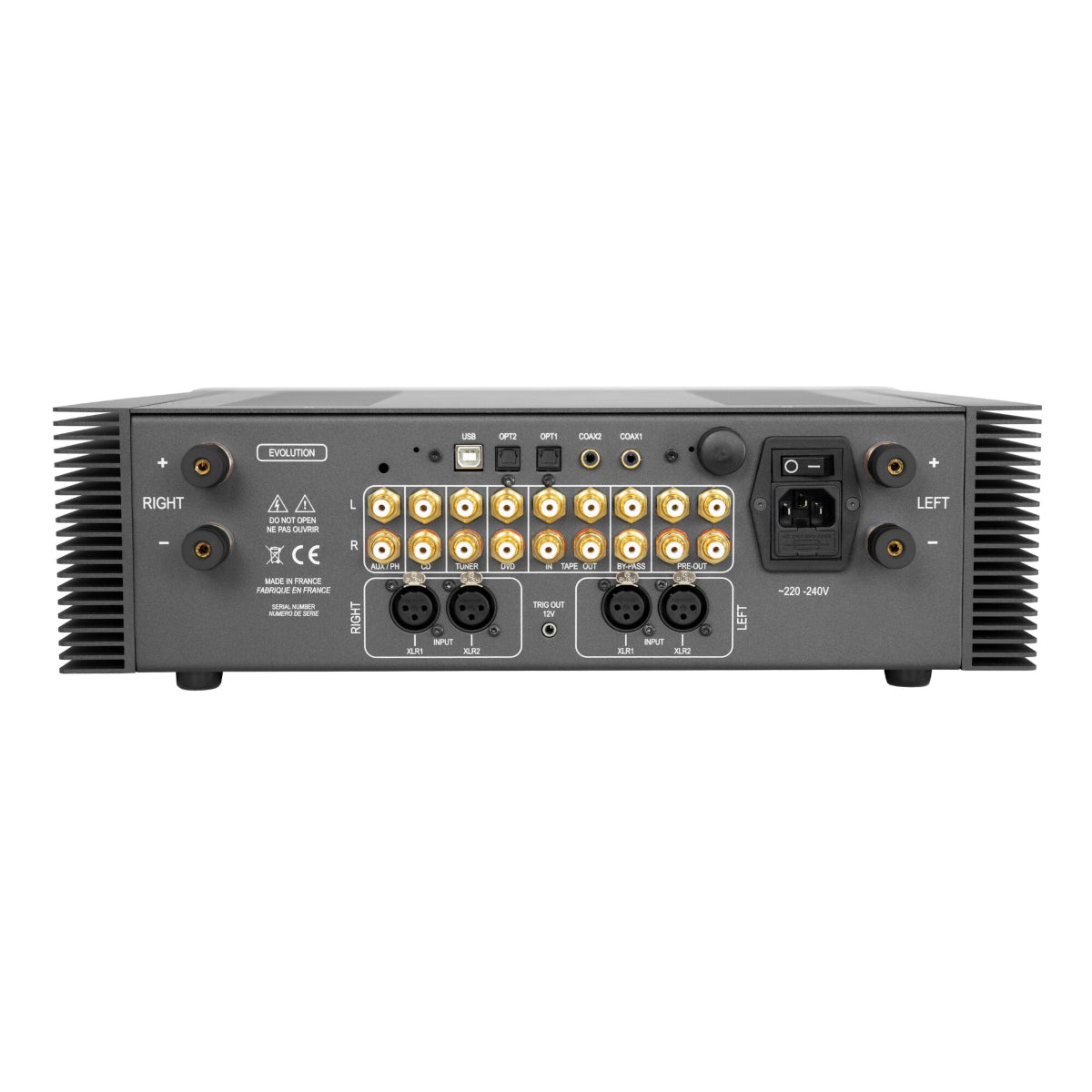

Connectivity

2 XLR inputs.
5 Line inputs: AUX or PHONO (option) CD, TUNER, DVD, TAPE.
1 BYPASS input.
1 12V Trigger output.
Possibility of adding the DA200 digital board (optional):
2 Optical inputs (24 bits/192 kHz).
2 Coaxial inputs (24 bits/192 kHz).
1 asynchronous USB input (24 bits/384 kHz) & DSD (up to 256).
1 Bluetooth input.

The IN400 Evolution can receive the following optional boards:
– DAC boards: DA100 and DA200.

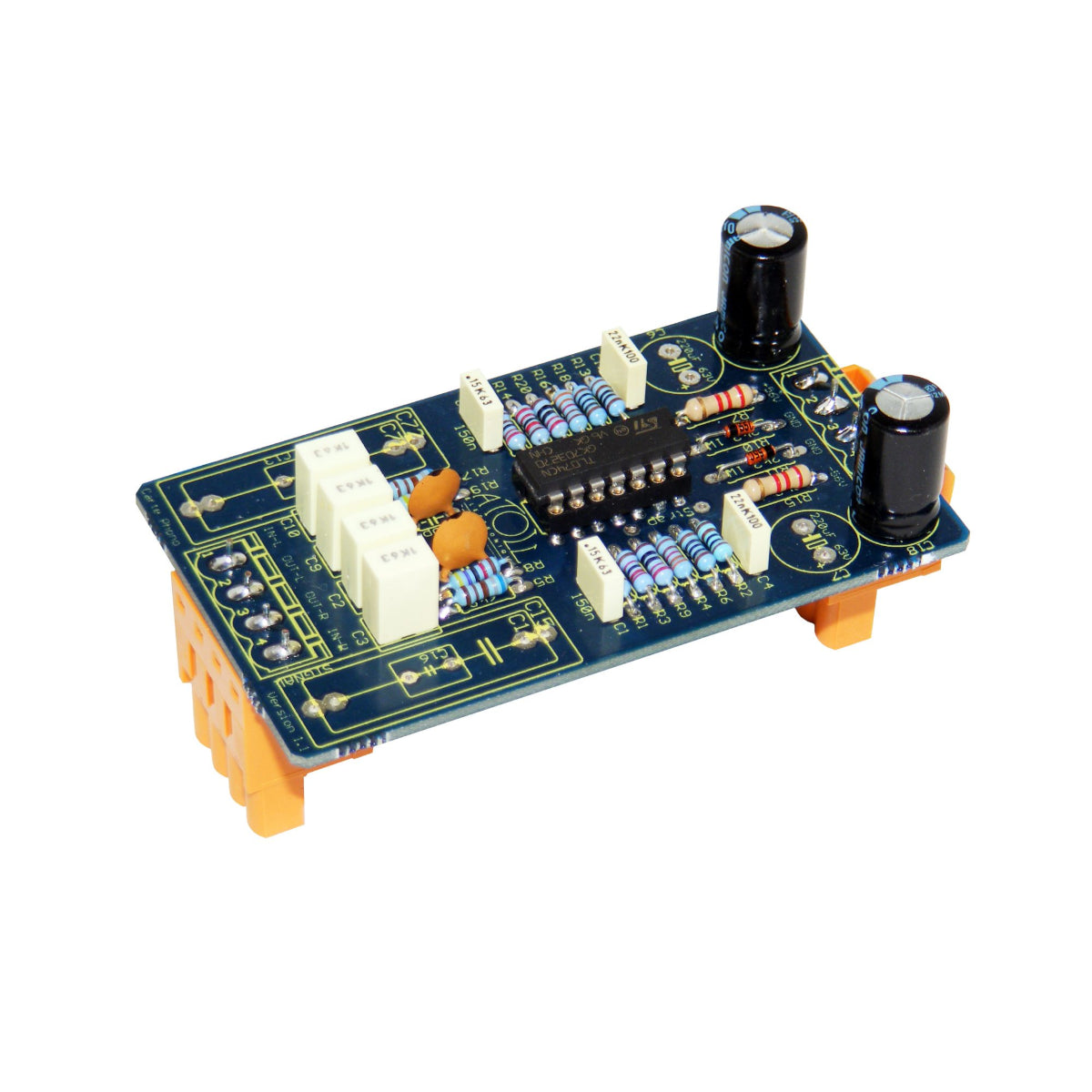

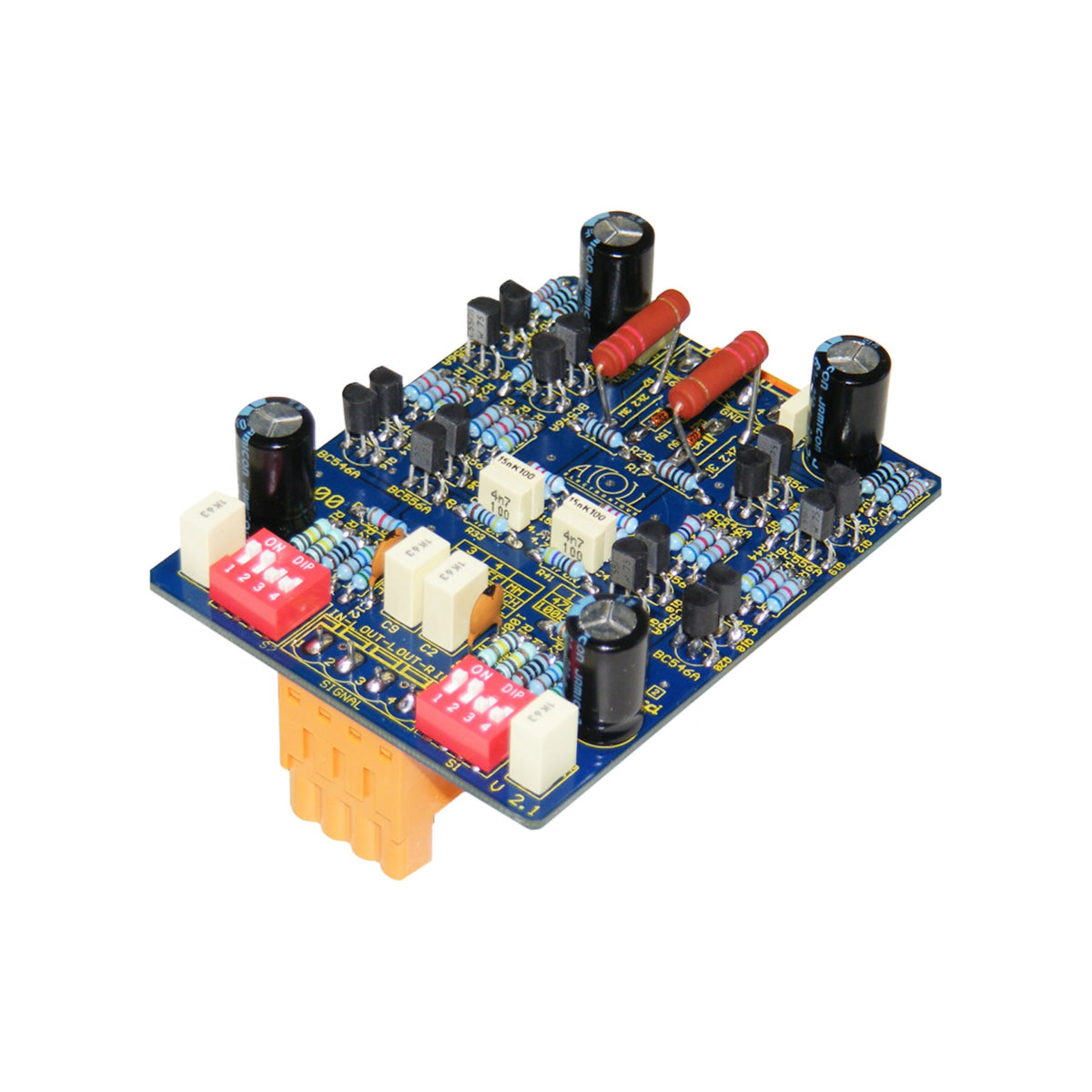

– PHONO boards: P50 and P100 (can be combined with DAC boards).

Features

Front face in 10 mm brushed, micro-blasted and anodised aluminium, with high-precision engraving.
Heatsink and buttons in billet aluminium.
2 mm steel frame.
One toroïdal transformer: 1050 VA for audio section
One transformer: 1.6 VA for control logic.
Integral double mono structure:
– Separate windings for the tracks.
– 1 attenuator per channel (with switched resistors).
Bipolar transistor input stages.
Current sources with bipolar transistors and LEDs to ensure perfect voltage stability.
Darlington transistor driver stages.
Audio stages with perfectly symmetrical structure and very low counter-reaction.
Power stages with MOS FET transistors (8 per channel) are rigorously matched.
Precise adjustment of the balance and the possibility of memorising it.
Possibility of choosing the standby mode: Low consumption or preheating.
Configurable button backlighting.
High contrast OLED display: ON or OFF mode (after 5 seconds of inaction).
ATOLL global remote control delivered as standard.
The IN400 Evolution can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).

Specifications

Power:2×160 Wrms / 8Ω – 2×300 Wrms / 4Ω
Total of capacitors:96 680 µF
Bandwidth (-3 dB):5 Hz – 100 kHz
Rise time:2 µs
Input impedance:357 kΩ
Sensitivity:450 mV
Signal-to-noise ratio:100 dB
Distortion rate at 1 kHz:0,05 %
Standby consumption (low consumption):< 0,5 W
Dimensions:440×370×130 mm
Weight:19,5 Kg

What's in the box

1 x IN400

1 x Remote Control

1 x Manual

1 x Standard IEC power cord

OPTIONAL BOARDS AVAILABLE

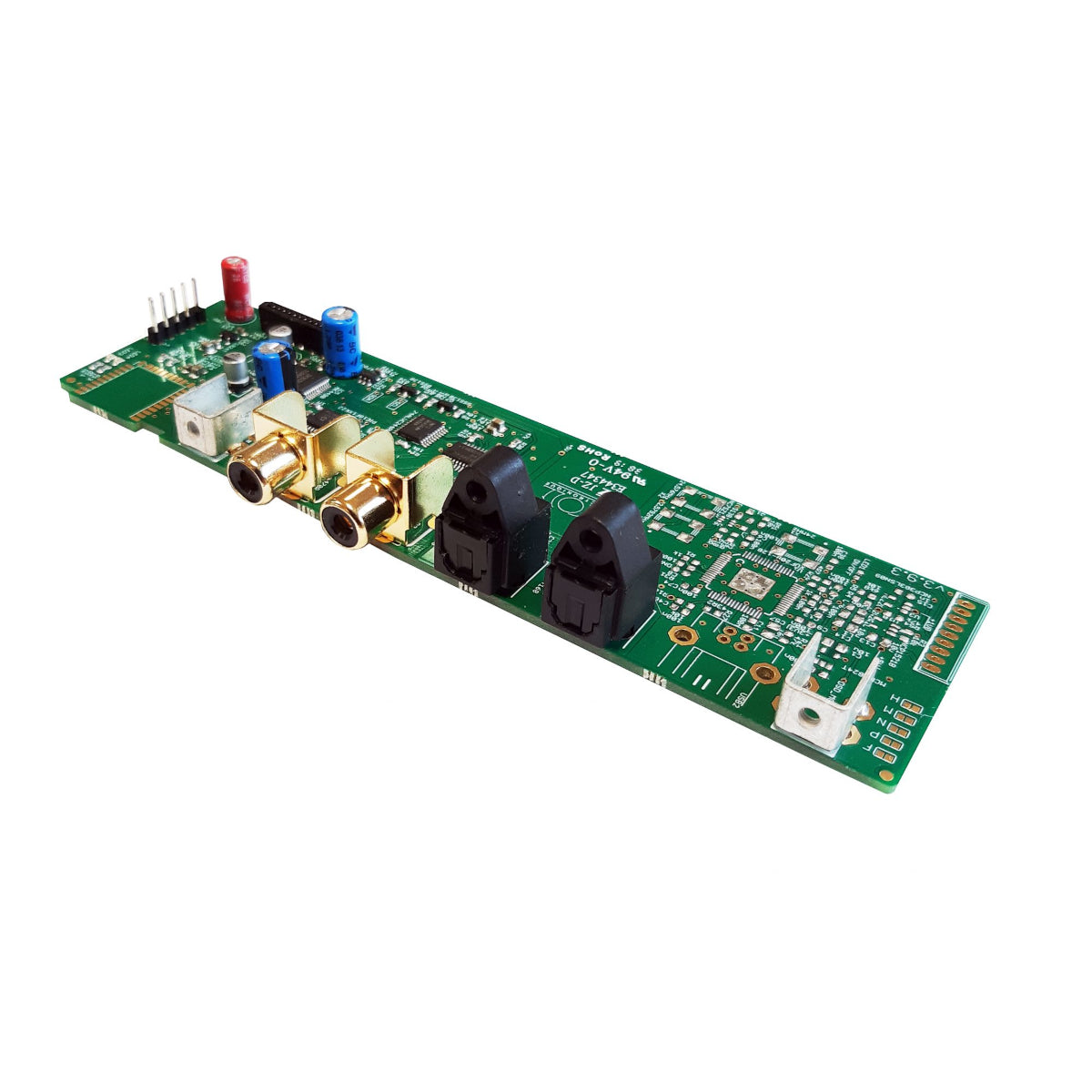

1 Digital board (of your choice):

DA200
2 Coaxial inputs (24 bits/192 kHz)
2 Optical inputs (24 bits/192 kHz).
1 Bluetooth receiver.
1 USB-B input: PCM & DSD.
DA100
2 Coaxial inputs (24 bits/192 kHz).
2 Optical inputs (24 bits/192 kHz).

———————————

1 Phono board on the AUX input (optional):
