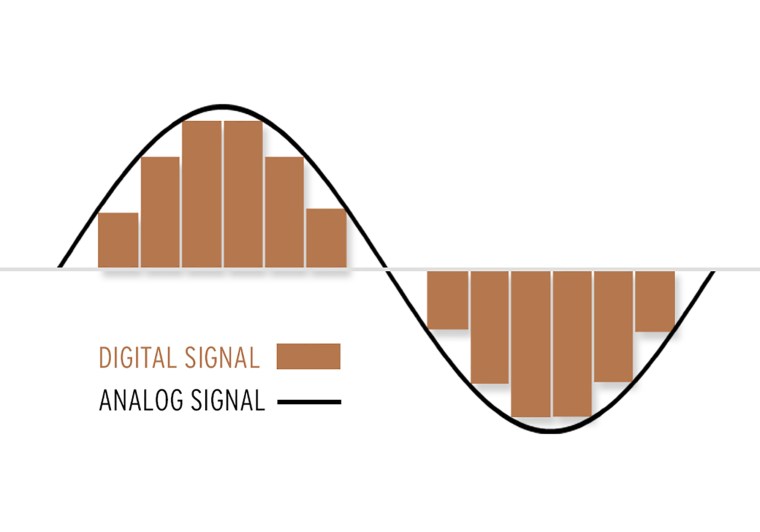

R2R vs Delta-Sigma DAC — Two Paths to Digital Music Reproduction
Share
Here is a simplified breakdown of R2R DACs vs Delta-Sigma DACs, so you can understand how they differ and what kind of sound or performance each offers:
1. Basic Concept
R2R DAC (Resistor Ladder DAC)
- Uses a precise network of resistors (R and 2R values) to convert digital signals directly into analog voltages.
- Essentially a discrete, linear conversion method — each bit directly contributes to the final output voltage.
- Often fully analog in operation, with minimal digital processing.
Delta-Sigma DAC
- Converts digital audio to analog using oversampling and noise shaping.
- The digital signal is modulated to a very high sample rate (often MHz range), then filtered to recover the analog waveform.
- Common in most modern DAC chips (e.g., ESS, AKM, TI, Cirrus Logic).
2. Sound Characteristics (This is subjective depending on individuals and equipment)
| Trait | R2R DAC | Delta-Sigma DAC |
|---|---|---|
| Tone | Warm, natural, “analog-like” | Clean, precise, detailed |
| Imaging | Organic, spacious | Pinpoint accuracy, tight focus |
| Dynamics | Smooth, relaxed | Punchy, crisp |
| Texture | Rich, slightly rounded edges | Highly resolved, sometimes clinical |
| Preferred by | Vinyl/analog enthusiasts | Studio, high-resolution digital users |
(Note: These are general impressions — high-end examples from both camps can sound excellent.)
3. Technical & Design Aspects
| Aspect | R2R DAC | Delta-Sigma DAC |
|---|---|---|
| Complexity | Harder to build; requires ultra-precise resistor matching | Easier and cheaper to mass-produce |
| Linearity | Can be imperfect if resistor tolerances drift | Excellent linearity due to digital correction |
| Noise Performance | Typically higher noise floor | Very low noise and distortion |
| Power Consumption | Higher | Lower |
| Cost | Usually more expensive | More affordable |
4. Examples
R2R DACs:
- LAiV Harmony DAC/ uDAC
- Denafrips Ares / Pontus / Terminator
- Holo Audio Spring / May
- Audio-GD R-1 / R-8
- MSB Technology DACs
Delta-Sigma DACs:
- Chord Qutest / Hugo 2 / DAVE (custom FPGA Delta-Sigma)
- Topping D90 / D70
- SMSL SU-9 / DO200
- RME ADI-2 DAC
5. In Summary
- Choose R2R DAC if you value natural, analog-like musicality and enjoy a more “organic” presentation.
- Choose Delta-Sigma DAC if you prefer accuracy, detail, and technical performance with modern precision.
